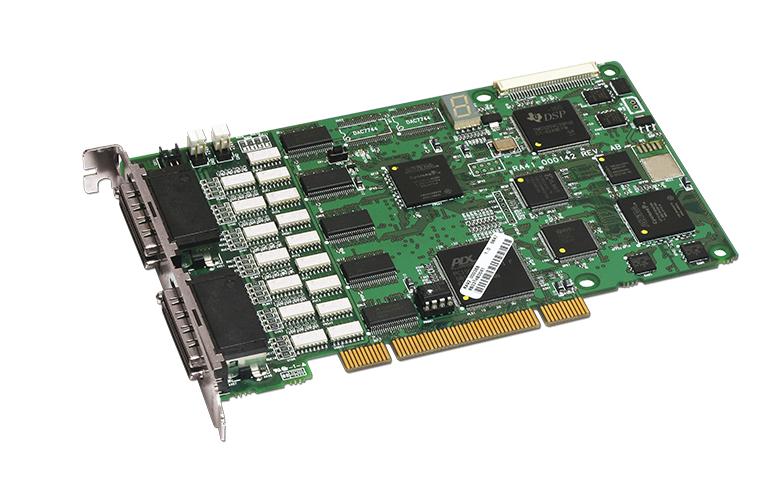

MMC_BDPV42PNA RS Automation
MMC_BDPV42PNA-RS Automation
Thông số kĩ thuật
MMCH Series
High performance, Ultra-compact Multi axes controller
– 4 axes and 8 axes Position/Speed control (8 axes synchronous control)
– Analog and pulse control output
– Support user-defined I/O, Basic 20/20 I/O, Expansion 64/64 I/O
– Supports MPG Input
– 500 μsec sampling rate
– Support Universal PC specitication and Window 7/10 32bit, 64bit
– Possible to control up to 64 axes(When 8 cards installed in a PC)
Half PCI MMC Product List
| BDPV82PNA |
Position / Velcovity / Torque Control, 8 axes, 20/20 Points |
| BDPV42PNA |
Position / Velcovity / Torque Control, 4 axes, 10/10 Points |
| BDPO82PNA |
Position Control, 8 axes, 20/20 Points |
| BDPO42PNA |
Position Control, 4 axes, 10/10 Points |
Thông số kĩ thuật MMC_BDPV42PNA
– Control Type : Position, Velocity, Torque
– Control Axes : 4 axes
– I/O : 10/10
– Remark : PCI Interface
– Specification
▶ Motion : PTP, CP, SPline, Circular Interpolation, 8 Axes Linear Interpolation
▶ Interface : PC / AT / Industrial PC / PCI 2.3
▶ Sampling rate : Default 2msec / 8 Axes, Variable 0.5msec ~ 4msec
▶ Analog out : ±10V, 16-Bit Resolution
▶ Pluse out : Max Freq = 16MHz,50% Duty Cycle, Min Freq = 250Hz@4msec 1KHz@1msec
▶ Command / Feedback range : 32-Bit, ±2,147,483,647
▶ Accel / Decel range : 0 to 25,000 (0 to 100 sec)
▶ Position Feedback : Input Frequency = 16MHz (max), Digital Noise Filter
▶ Velocity Profile : Symmetry / Asymmetry Trapezoidal
