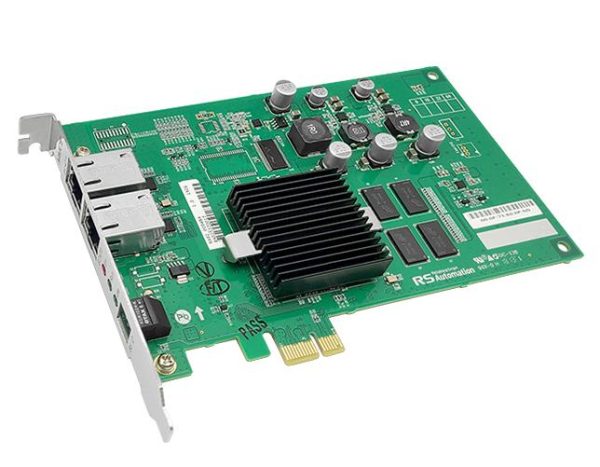

MMC_BDPO32PCB RS Automation
MMC_BDPO32PCB-RS Automation
Thông số kĩ thuật
MMCE Series
MMC-EtherCAT is a high-performance motion controller that were mounted on a PC which designed with 20 years of experience form obtained in the field.
It is the real-time motion controller based on network supports various motion profile and functions.
It provides a greater competitive edge when it applied to large equipment that the number of axes are largely used.
MMC-EtherCAT supports to use a variety of product that do not support the network by providing the option product, MMC-EtherCAT-Function Module.
– EtherCAT network master; standard specification (CoE, CiA402)
– Advantages
▶ Simultaneous control of 64 axes motor and 5,440 points I/O (lms control period), for 4 boards 256 axes + 21,760 points
▶ Speed and position override implemented in a various motion blending
▶Geared Motion
▶Touch Probe
– Use of PCIe slot
– Maximum cable distance between nodes : 100m
– Designed with API that PLC users can be familiar with
– Wiring System : Star, Line
– Tool : MMC-EtherCAT manager, MMC-EtherCAT I/O manager, MMC-EtherCAT scope
– Funtion Module is supported as an option for connecting to general product.
– Main Features
▶ Digital CAM switch, Linear Absolute, Linear Circular
▶ Buffered, Aborting, Blending Low, Blending High, Blending Previous, Blending Next
MMC_BDPO32PCB
– Control Axes : 32 axes
– Possible Control Mode : Position Control
– I/O Support : 2,720 Points
– Specification
▶ Motion : Linear, Circle, Spline, Override, Touch probe, Gantry
▶ Interface : PCI-Express 1x to PC, EtherCAT to Slaves
▶ Sampling rate: Position 1msec/64 axes
▶ Velocity Profile : Symmetry / Asymmetry Trapezoidal and S-Curve, Acceleration and Deceleration
▶ Communication :EtherCAT 100Mbps
▶ Power Supply : PC Power 3.3V, 12V Main Power Source
▶ Environment : 0℃ ~ 50℃ (5 ~ 85%, Non Condensing)
▶ OS : 32/64 Bit Windows 7/10
▶ Software : Visual C++, Visual Basic
▶ Size : 126.3 x 181.05, PCI Half Length Card
