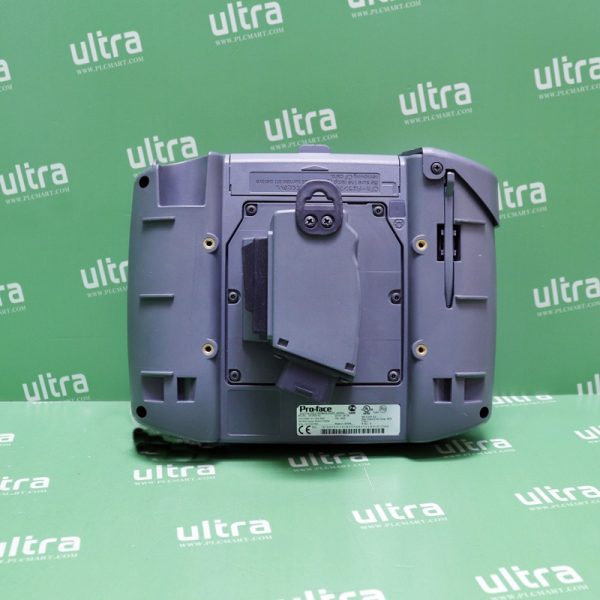

| Display Type |
|
| Display Size |
|
| Resolution |
|
| Dot pitch |
W0.36 x H0.36 mm [W0.01 x H0.01 in.]
|
| Effective Display Area |
W117.2 x H88.4 mm [W4.61 x H3.48 in.]
|
| Display Colors |
|
| Backlight |
White LED (User nonreplaceable parts, return system to distributor.)
|
| Brightness Control |
16 Levels (Adjusted with the touch panel)
|
| Contrast Control |
8 Levels (Adjusted with the touch panel)
|
| Language Fonts |
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.
|
| Character Sizes |
Standard font: 8 X 8, 8 X 16, 16 X 16 and 32 X 32 pixel fonts, Stroke font: 6 to 127 pixel fonts
|
| Font Sizes |
Standard font: Width can be expanded up to 8 times., Height can be expanded up to 8 times.
|
| 8 x 16 dots |
|
| 16 x 16 dots |
|
| 32 x 32 dots |
|
| 8 x 8 dots |
|
| Application Memory |
|
| Data Backup |
SRAM 320KB (uses lithium battery)
|
| Clock Accuracy |
65 sec/month (deviation at room temperature and power is OFF)
|
| Touch Panel Type |
|
| Touch Panel Resolution |
|
| Touch Panel Service Life |
|
| No. of Key Switches |
|

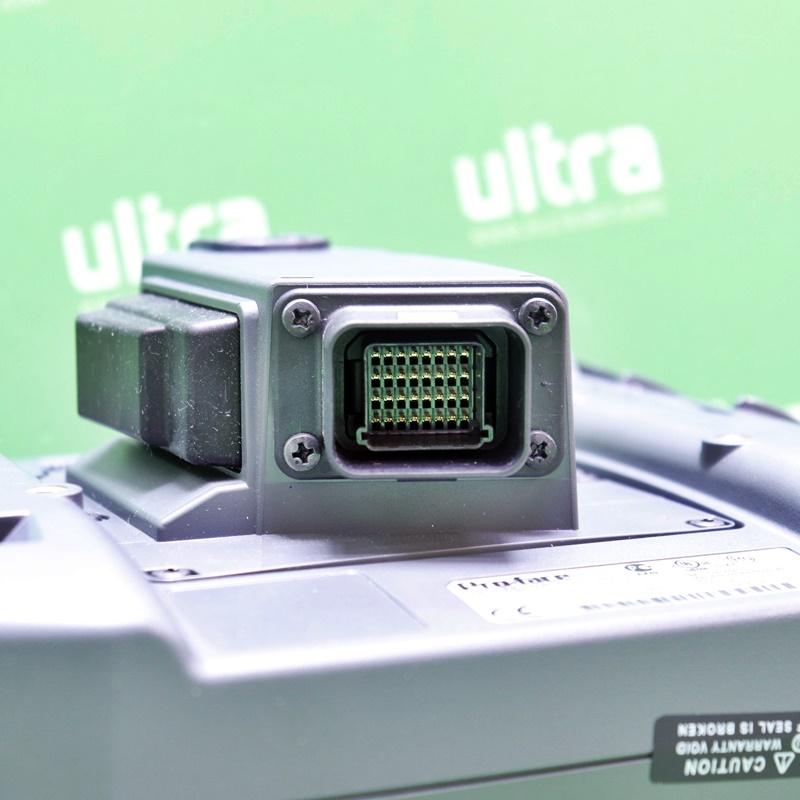

| Serial (COM1) |
RS-232C/422/485, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
|
| USB (TYPE-A) |
Conforms to USB1.1. (TYPE-A conn.) X 1, Power Supply Voltage: DC5V±5%, Output Current: 500mA (max.), Communication Distance: 5m (max.)
|
| CF Card |
Compact Flash CF Card Slot (TYPE-II) X 1
|

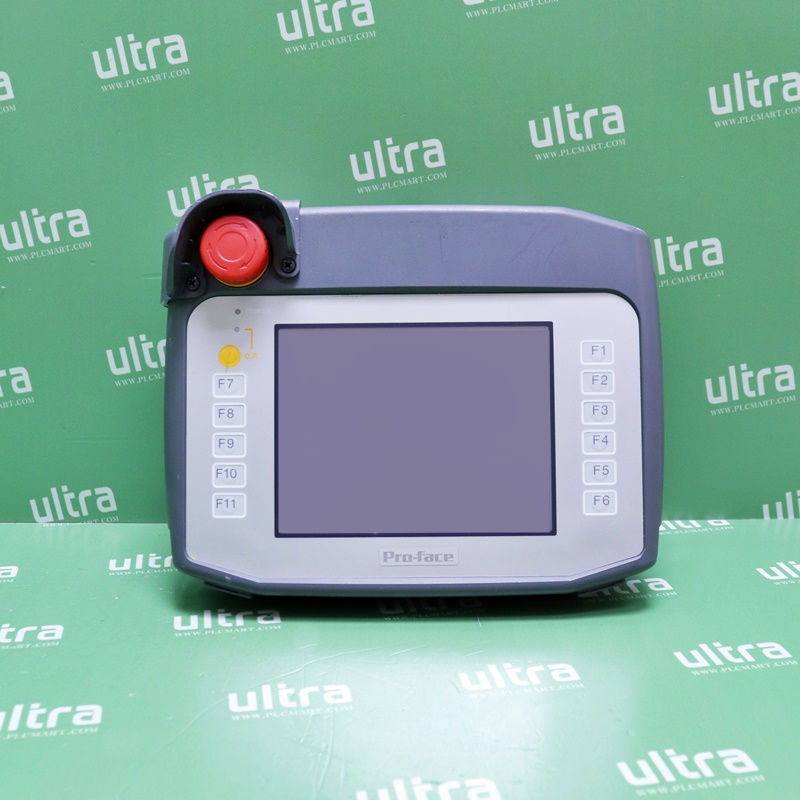

| Function Switch |
12 switches (Right: 6 switches, Left: 6 switches) (DOUT: 2 Open Collector Output [F1, F2], Operation Switch: 1 Open Collector Output [O.P])
|
| Emergency Switch Output |
Push-lock switch, 3 contacts (a-contact: 1 contact, b-contact: 2 contacts), Rated voltage: DC 30 V, Maximum rated current: 1 A, (Minimum allowable load: DC 5 V, 1 mA), Applicable standards: IEC/EN60947-5-1, IEC/EN60947-5-5, UL508, CSA C22.2 No.14
|
| 3-Position Enable Switch Output |
GP Rear panel switch, 2 contacts (a-contact), Rated voltage: DC 30 V, Maximum rated current: 700 mA (Minimum allowable load: DC 3 V, 5 mA), Applicable standards: ICE/EN60947-5-8, UL508 (UL approval), CSA C22.2 No.14 (UL approval), ISO12100/EN292, IEC/EN60204-1, ISO11161/prEN11161, ISO10218/EN775, ANSI/RIA R15.06, ANSI B11.19
|
| Operation Output |
Open Collector Output: 1 point, Rated Voltage: DC 24 V, Maximum Rated Current: 300 mA*4
|
| External Buzzer Output |
Open Collector Output 1 point, Rated Voltage: DC 24 V, Maximum Rated Current: 300 mA*5
|
| DOUT Output |
Open Collector Output: 2 points [F1, F2], Rated Voltage: DC 24 V, Maximum Rated Current: 300 mA/point*6
|
